CWWK N150 Mini PC (Upgraded N100) X86-P5 Pocket-NAS, 4 x M.2 NVMe Mini Computer with 2 x i226-V 2.5GbE LAN, Barebone Micro PC DDR5 NO RAM/SSD/OS, WiFi7/BT5.4 Expandable, 2-Display

• 2025 New Gen. N150 Processer: The CWWK X86 P6 PocketNAS features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), with 4 cores 4 threads, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it’s perfect for energy-efficient systems. The N150 supports the official Unison-App, enabling seamless collaboration between the PC and smartphone
• 4 x M.2 NVMe + DDR5 RAM: Featuring 4 x M.2 slots (PCIe3.0 x1) compatible with 2280-size NVMe SSDs, this device also includes 2 x 12-pin non-standard SATA3.0 ports for connecting SATA SSDs/HDDs externally using adapter cables. Additionally, it is equipped with 1 x DDR5 SO-DIMM slot supporting 4800MHz RAM, allowing for memory expansion up to 48GB
• Ultra-Compact with Superior Cooling: Ultra-compact and portable, this device fits perfectly in space-limited settings like home labs, offices, or small server racks, and is ideal for business trips. It features a pure copper CPU contact for efficient heat dissipation and includes an optional 7015 fan for added cooling
• Various I/O Interfaces: The processor comes with integrated UHD Graphics (1GHz, 24EU), supports hardware decoding and 4K video output. Equipped with 2 x HD ports, it supports dual screen display up to 4K@60Hz. 2 x USB3.2 10Gbps for data transfer or USB peripherals. Internally, 1 x M.2 E-Key WiFi slot for Wi-Fi7/BT5.4 wireless card expandsion
• 2 Port 2.5Gbit High-speed LAN: With 2 x i226-V 2.5Gigabit Ethernet controllers, this device supports high-speed networking and is compatible with open-source NAS systems, WinOS, Linux, and PVE virtualization platforms. It is ideal for creating VMs, NVMe-RAID setups, and 24/7 continuous operation

CWWK X86-P6 Ultra-small Size Pocket-NAS Mini PC

CPU Options: Twin Lake N150 / Core 3 N355

Memory: 1 x SO-DIMM DDR5 RAM slot, up to 48GB (max 4800MHz)

Storage: 4 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 2 x 12-pin non-standard SATA3.0 ports

Network Controller: 2 x i226-V 2.5GbE LAN

Display Ports: 2 x HD2.0, supports up to 4K@60Hz

USB Ports: 2 x USB 3.2 Type-A (10 Gbps)

Internal Pin: USB2.0 Pin, COM Pin, GPIO Pin, Auto Power On Jumper Cap

Case: Full aluminum alloy case, the top cover is freely detachable.

Fan Installation: Support additional 7015 USB fan on the top (included)

Power Supply: DC 12V

Operating Temperature: -10°C ~ 70°C

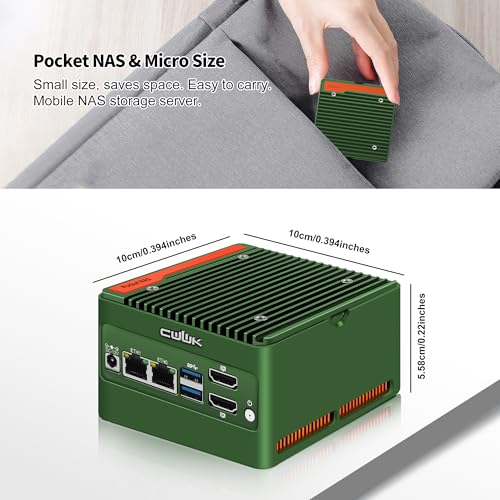

Size: 10 x 10 x 5.8 cm / 4.33 x 3.94 x 1.38 inches

Weight: 1.2kg / 2.63 lb

Package Contents: CWWK X86-P5 Mini PC, Power Adapter, 7015 USB fan , fan cover, NVMe SSD thermal pads, Screws

Official Support: The product user manual, various driver files, and other product-related documents available on the official website

Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot, Power Management

Operating System: Preinstall win11 Pro, support PVE, EXSi, Linux/TrueNAS/unraid/Ubuntu and other open source
