Mini PC Firewall Appliance Core i5-1135G7, 2 x 10GbE SFP+ Mini Computer with 4 x i226-V 2.5GbE LAN, S5 OPNsense Micro PC Barebone NO RAM/SSD/OS, 4K 3-Display, USB-C, AES-NI

• Core i5-1135G7 Processer: The CWWK S5 Mini PC equipped with Core i5-1135G7 CPU, 4 cores and 8 threads, base Frequency 2.4GHz, up to 4.20GHz, 8MB cache, TDP12-28W. Supports AI Deep Learning for accelerating AI task processing. Supports AVX-512 and AES-NI instructions, Auto Power On, Wake-on-LAN, and PXE-Boot
• 2 x 10Gb + 4 x 2.5Gb High-speed LAN: Equipped with 2 x 82599ES 10Gbit SFP+ ports and 4 x i226V 2.5Gbit Ethernet ports, offering high bandwidth and better network performance. It is compatible with various open-source soft router systems, WinOS, Linux and PVE, etc

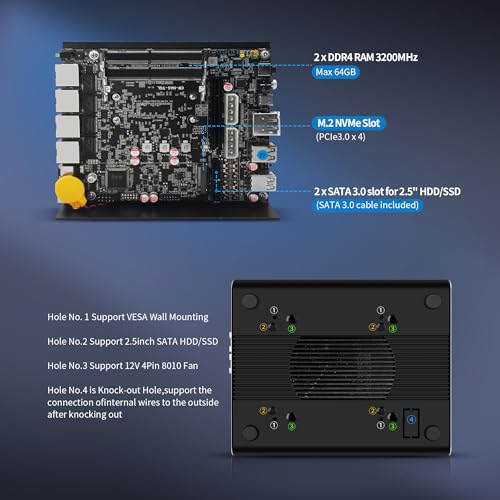

• Support DDR4 RAM + NVMe SSD: Features dual channel DDR4 SO-DIMM 3200MHz RAM slot, supports up to 64GB of memory. With 1 x M.2 M-Key slots (PCIe3.0 x4) for 2280-sized NVMe SSDs, it also offers 2 x SATA3.0 ports for SATA SSD/HDD installation
• Various External I/O Port: The processor comes with integrated Iris Xe Graphics (80EU), equipped with HD + DP + Type-C port, support triple screen display up to 4K@60Hz. 2 x USB3.0, 1 x USB-C and 2 x USB2.0 ports. 1 x RJ45 Console port and 1 x audio interface

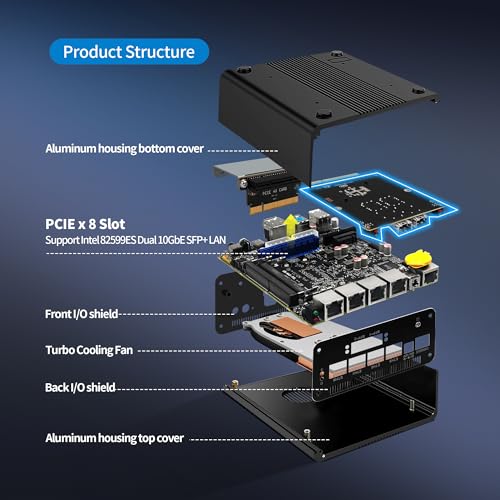

• Full Metal Case: The metal casing provides better durability and effectively improves heat dissipation, ensuring stable operation under heavy load for extended periods. The bottom has a variety of adapter holes that can be used to install fans, fix 2.5" HDD/SSD, or adapt to VESA

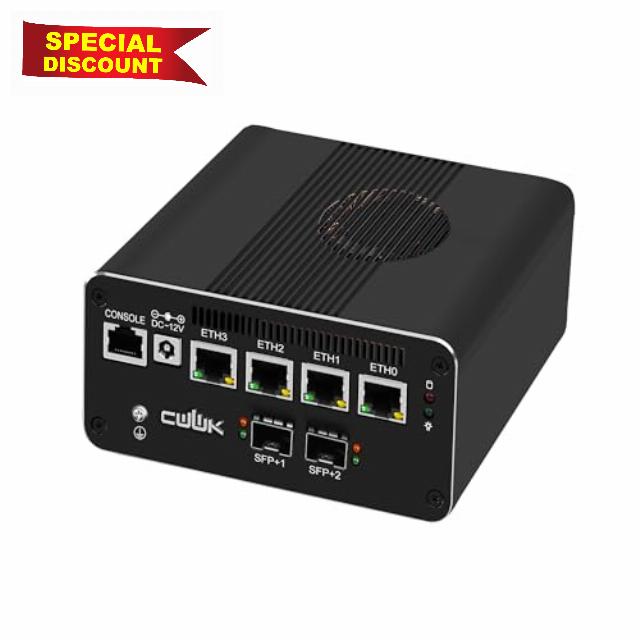

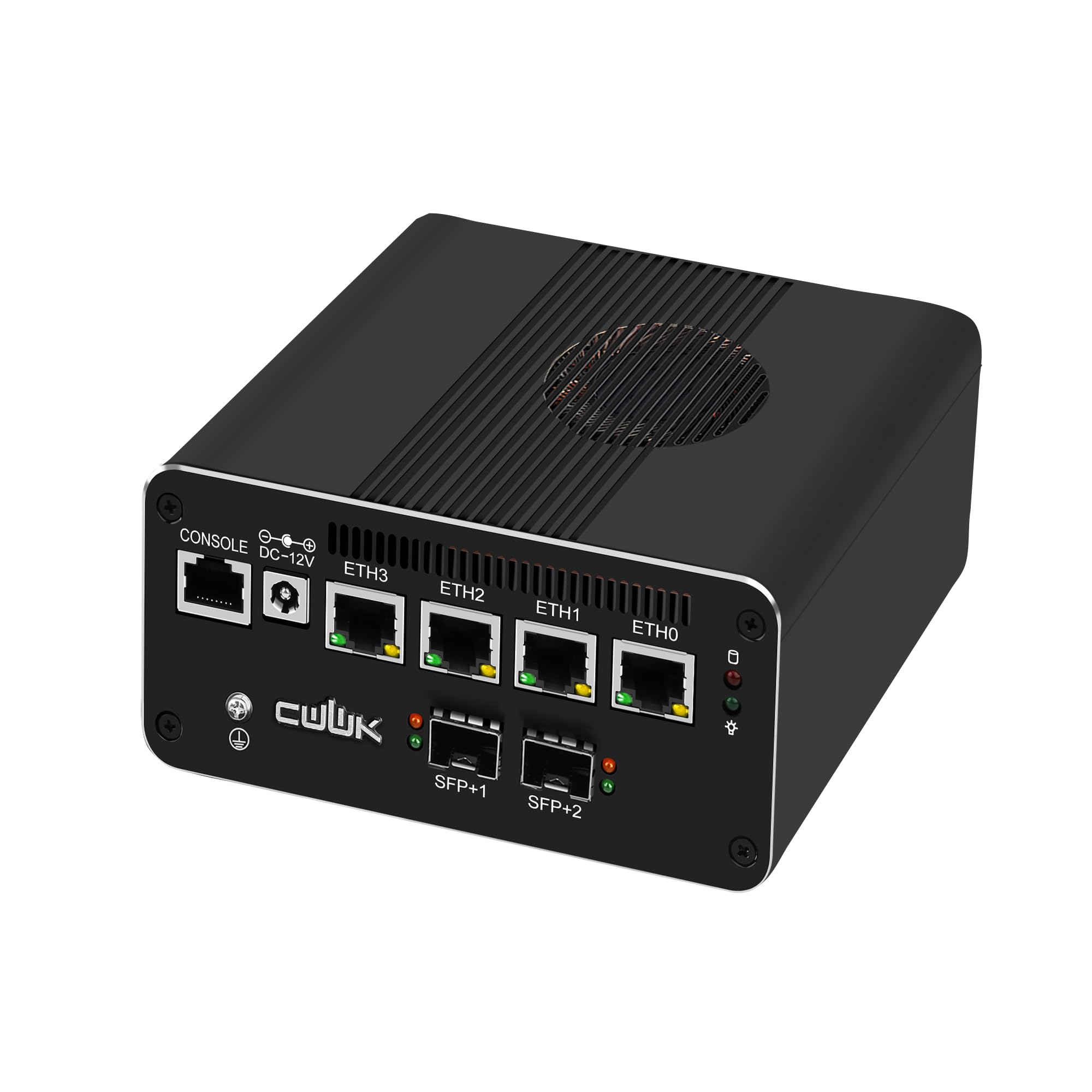

CWWK S5 Dual 10GbE 4 x 2.5GbE Network Port Mini PC

CPU Options: Core i3-1115G4 / Core i5-1135G7 / Core i7-1185G7

Memory: 2 x SO-DIMM DDR4 RAM slot, up to 64GB (max 3200MHz, compatible with 2400/2666 MHz)

Storage: 1 x M.2 2280 NVMe SSD slot (PCIe3.0 x4), 2 x SATA3.0 ports

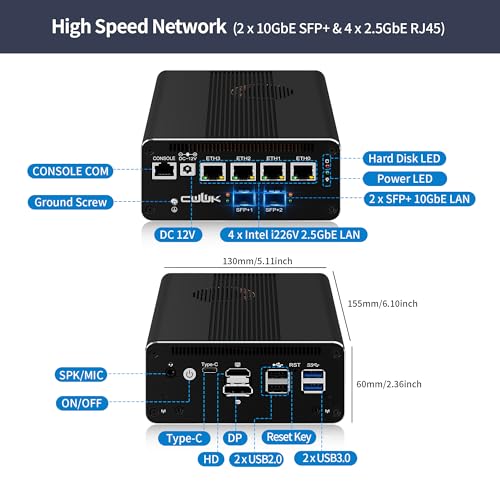

Network Controller: 2 x 82599ES 10GbE SFP+ LAN, 4 x i226-V 2.5GbE RJ45 LAN

Display Ports: HD + DP + Type-C port, supports up to 4K@60Hz

USB Ports: 2 x USB 3.0, 1 x USB-C, 2 x USB 2.0

Internal Pin: TPM Pin, COM Pin

Case: Full aluminum alloy case

Cooling Type: Active Cooling

VESA Adapter: Supported

Fan Installation: Supports additional 1 x 12V 4-pin 8010 fan

Power Supply: DC 12-19V

Operating Temperature: -0°C ~ 70°C

Humidity: 5%~85% relative humidity, non-condensing

Size: 15.5 x 13.0 x 6.0 cm / 6.1 x 5.11 x 2.36 inches

Weight: 1.2 kg / 2.65 lb

Package Contents: CWWK S5 Mini PC, Power Adapter, SATA Cable, Fan Adapter Cable, VESA Adapter, Screws

Official Support: The product user manual, various driver files, and other product-related documents available on the official website

Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot

Operating System: Supports Soft Router System, Win OS, Linux, PVE, ESXi

External Cable Connections: Supports external connections. Open design with removable front and back. The bottom can be removed for cable connections, especially for requiring external 3.5″ SATA HDD
