BOFRHME Embedded 1D 2D Barcode Scanner QR Bar Code RFID Card Reader Wiegand

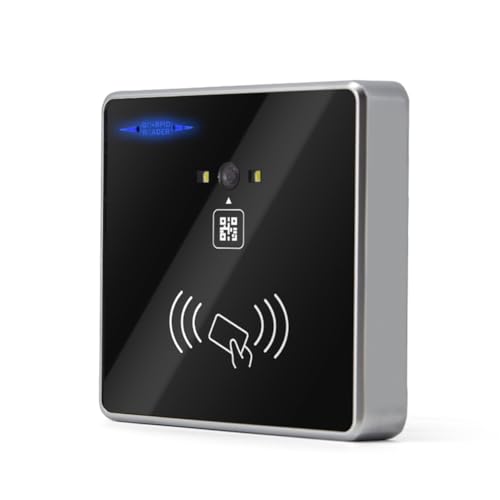

BOFRHME Embedded 1D 2D Barcode Scanner QR Bar Code RFID Card Reader Wiegand Connection Self-Induction for Gate Machine

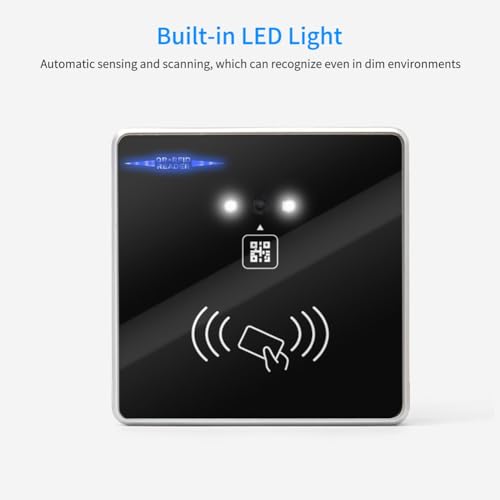

• Using image scanning technology, it can scan paper code and screen code, fast to recognize the barcodes.

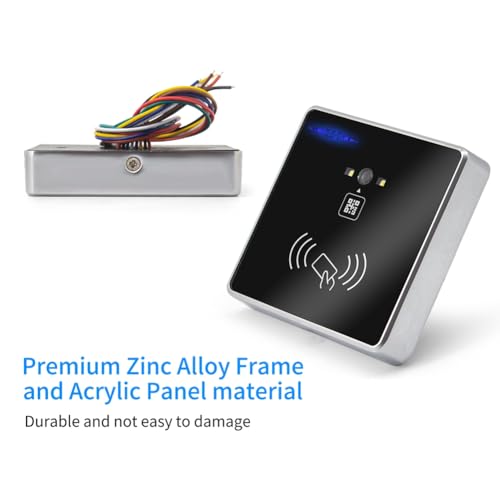

• Made of high quality Zinc Alloy Frame and Acrylic Panel material, the scanner is and not easy to damage.

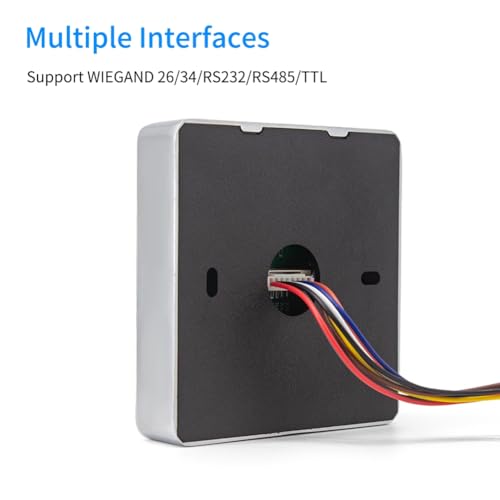

• High performance decoding chip, can read 1D/ 2D QR codes and IC card, Communication Method: WIEGAND 26/34/RS232/RS485/TTL.
• The buzzer make a crisp sound "Beep" to prompt after successfully scanning.
• The scanner module can be applied in various occasions such as elevator, community visitors' entry and exit management and son on. Perfect upgrade of traditional card swiping system for various industries.

BOFRHME Barcode Type: Qr, One/Two-Dimensional Code
Communication Method: WIEGAND 26/34/RS232/RS485/TTL
Decoding Mode: Image Decoding
Reading Direction (Bar Code): Angle 45° With The Lens As The Center Point
Scan Code Characteristics: Automatic Induction, Buzzer Promp
Operating Voltage: 8-12v
Working Current: 800ma

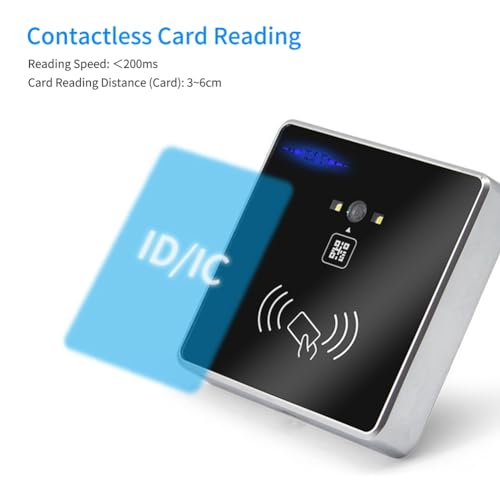

Card Reading Distance (Card): 3~6cm
Reading Distance (QR Code): 0-20cm
Working Humidity: 10%~90%
Operating Temperature: -20℃~70℃
: XP/7/8/10), Linux
Indicator Light: Blue Work Light, Green Feedback Light
Colour:As Shown
Material:plastic

Package Contents:
1 x Embedded 1D 2D Barcode Scanner

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
